FEATURES
Zero Emission
Quiet, clean electric mobility with zero tailpipe emissions
Plug-in Hybrid
Supports external charging using renewable electricity
Intelligent Power Controls
Optimized for dynamic driving and start-stop operation
Custom Branding
Custom decals, colors, and branding for hydrogen initiatives
Extended Range
Up to 3× longer range compared to battery-only systems
Green Hydrogen Ready
Compatible with solar-powered hydrogen production systems
Hybrid Lithium Battery
Provides peak acceleration and regenerative braking support
Scalable Platform
Available in higher-capacity and extended seating configurations
Fast Refueling
Hydrogen refueling in as little as 5 minutes
Extended Battery Life
Fuel cell system maintains optimal battery state-of-charge
TN1 Hydrogen Receptacle
Compatible with hydrogen refueling nozzles worldwide
IOT Ready
Real-time monitoring of fuel cell status and CO₂ reduction data
SPECIFICATIONS
DEFAULT CONFIGURATION SYSTEM PARAMETERS

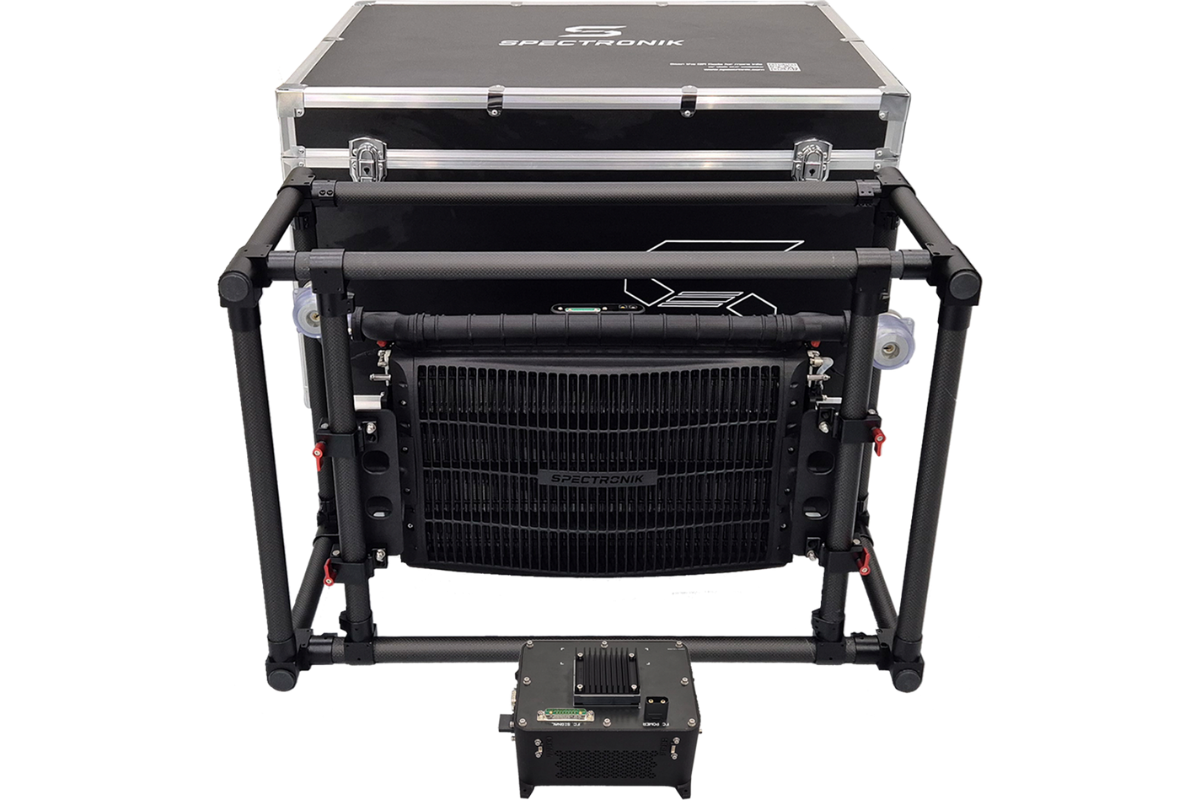

Fuel Cell System
Spectronik Protium-3000 (3 kW)
Hydrogen Storage Cylinder
22L, 350 bar
Driving Range
150 to 200 km
Maximum Speed
45 km/h

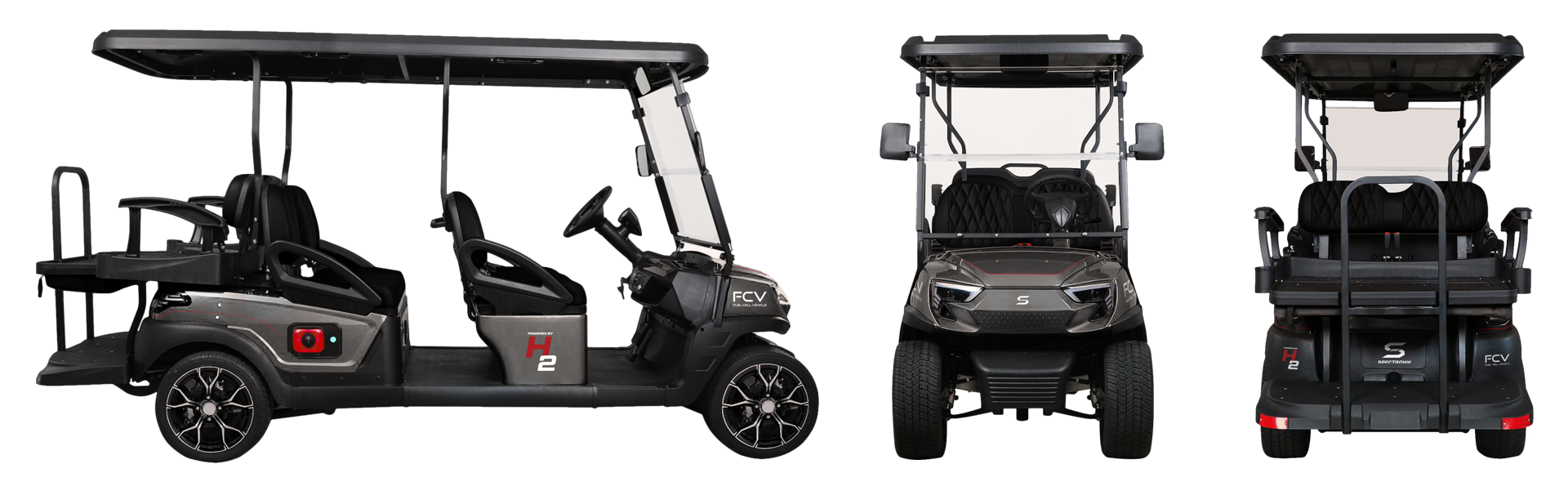

Dimensions (L × W × H)
3700 × 1330 × 2050 mm
Net Weight (Without Battery)
520 kg
Payload Capacity
510 kg
Front / Rear Track
860 / 970 mm
Wheelbase
2490 mm
Ground Clearance
135 mm
Minimum Turning Radius
6.7 m
Gradeability
≤30%
Steering System
Self-Adjusting Rack & Pinion Steering
Brake System
Rear Mechanical Drum Brakes
Drive Motor
48V 5kW AC Motor
Rear Transaxle
Lingyue Axle
Motor Controller
Curtis Controller 1232SER-5422 48V 400A
Battery System
LiFePO4 210Ah
On-Board Charger
Included
Front & Rear Suspension
MacPherson Independent Spring Suspension
Chassis
Aluminium Chassis
Body Material
PP Engineering Plastic
Tyre
215/35R14 Tyre
PREMIUM FEATURES
Rear View Camera System
Heavy-Duty Suspension System
Integrated Golf Ball Holder
High-Capacity Lithium Battery Pack
Electronic Parking Brake
Rear Safety Grab Handles
Rear Utility Storage Compartment
Forward & Reverse Selector
Bluetooth Multimedia System
Dual Cup Holder Console
Premium Steering Wheel With Custom Logo
3-Point Safety Seat Belts
Rear Golf Bag Platform
Front Ambient LED Lighting
Adjustable Side View Mirrors
USB Charging Port
Digital Instrument Display
Integrated Security Key System
CUSTOMIZATION OPTIONS
Option 1: Sport Alloy
Option 2: Multi-Spoke
Option 3: Matte Black
Option 4: Machined Sport
Option 5: Classic Four-Spoke
Option 6: Off-Road Black
Jet Black
Pearl White
Titanium Silver
Racing Red
Sunset Orange
Deep Burgundy
Midnight Navy
Electric Blue
Ocean Blue
Sky Blue
Mint Green
Lime Green
UPHOLSTERY OPTIONS

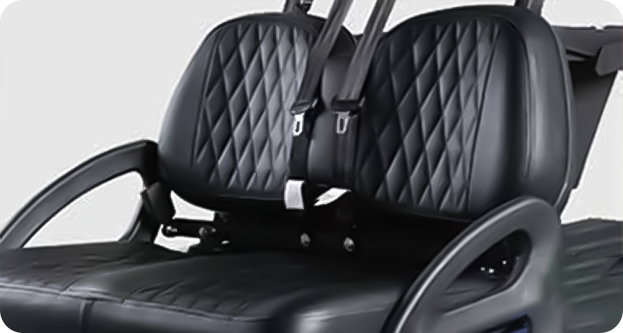

Option 1: Black Diamond

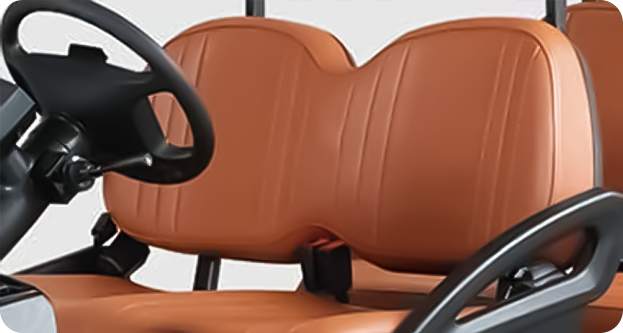

Option 2: Saddle Tan

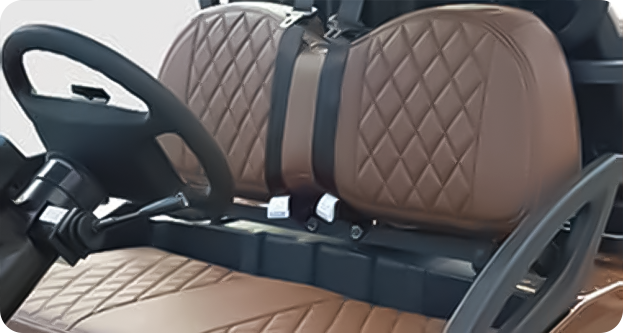

Option 3: Mocha Diamond

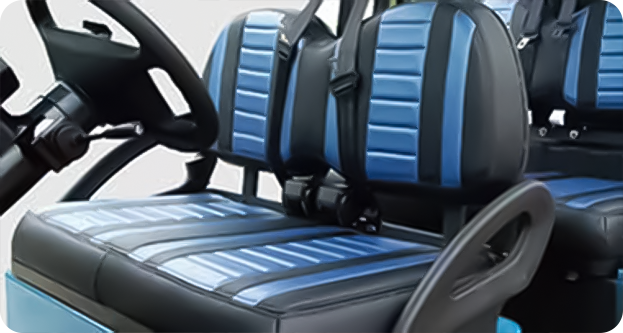

Option 4: Blue Sport

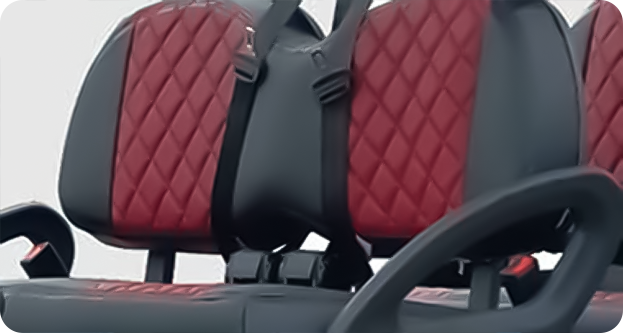

Option 5: Burgundy Sport

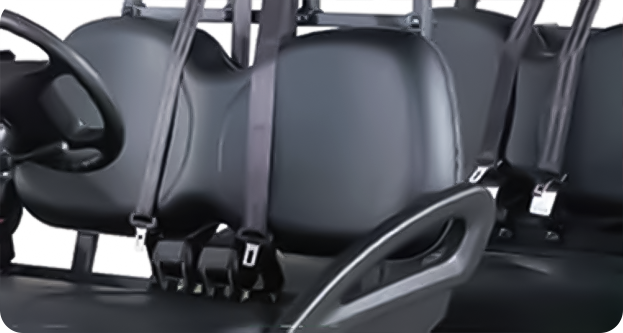

Option 6: Executive Black
ORDER CODE
Vehicle
Wheel Option
Vehicle Color
Upholstery Option
Fuel Cell

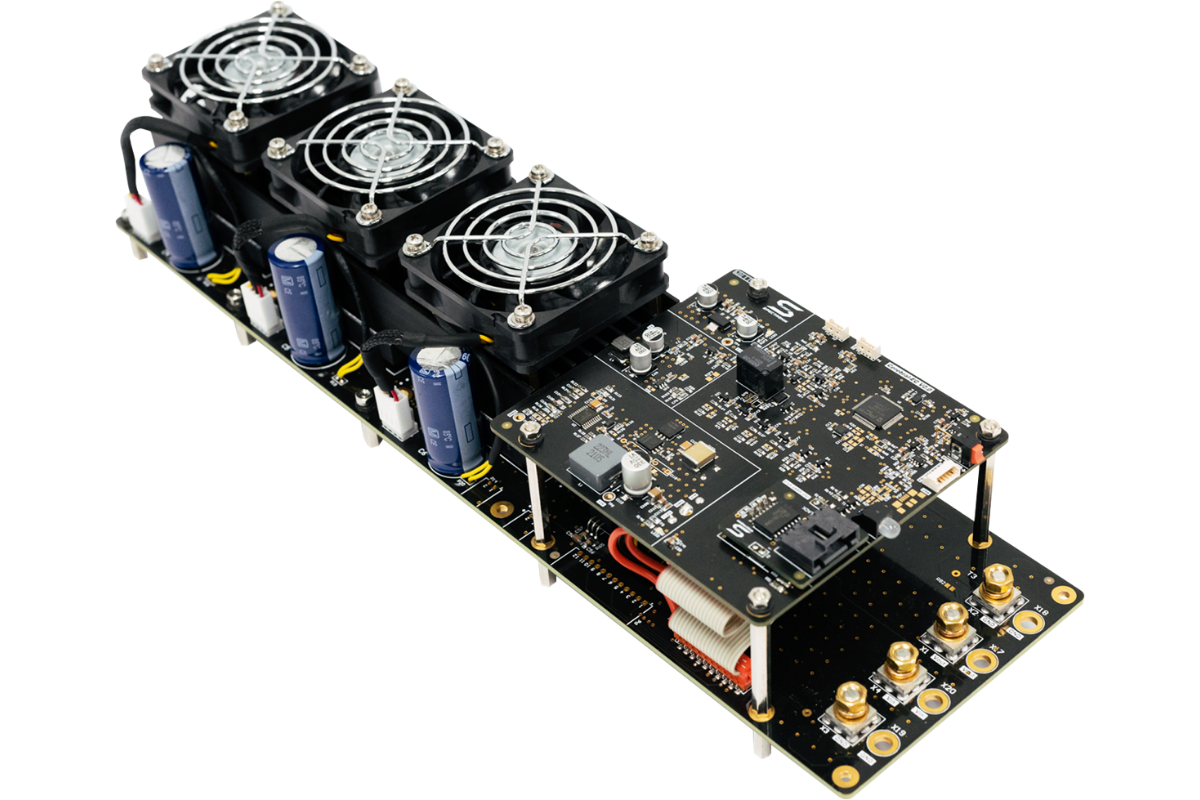

DC-DC Converter

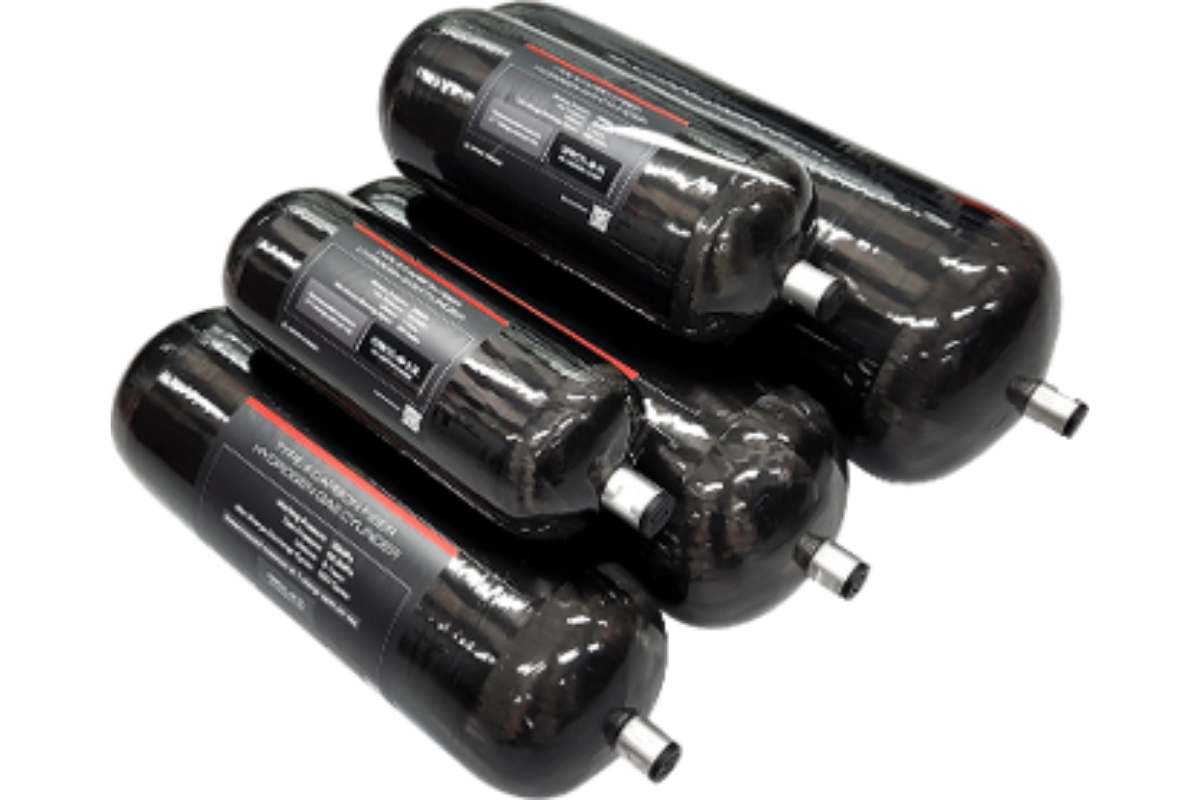

Gas Cylinder

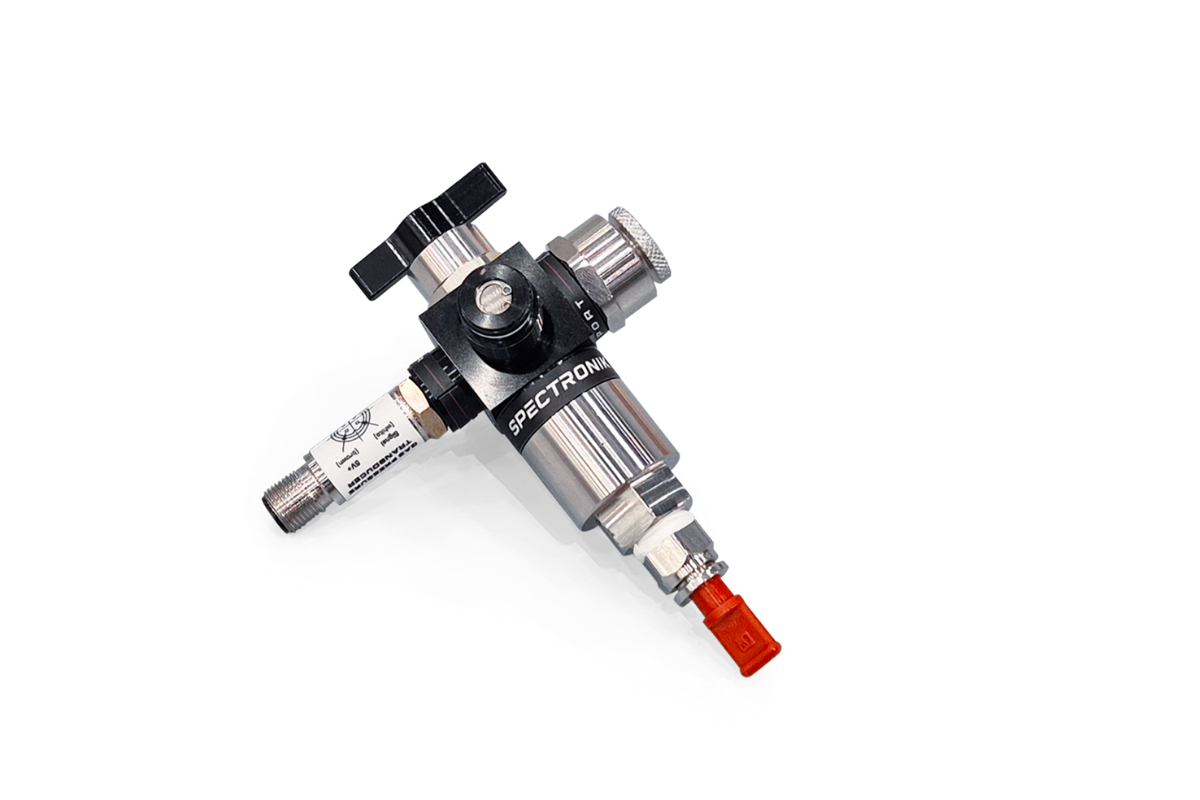

Gas Pressure Regulator

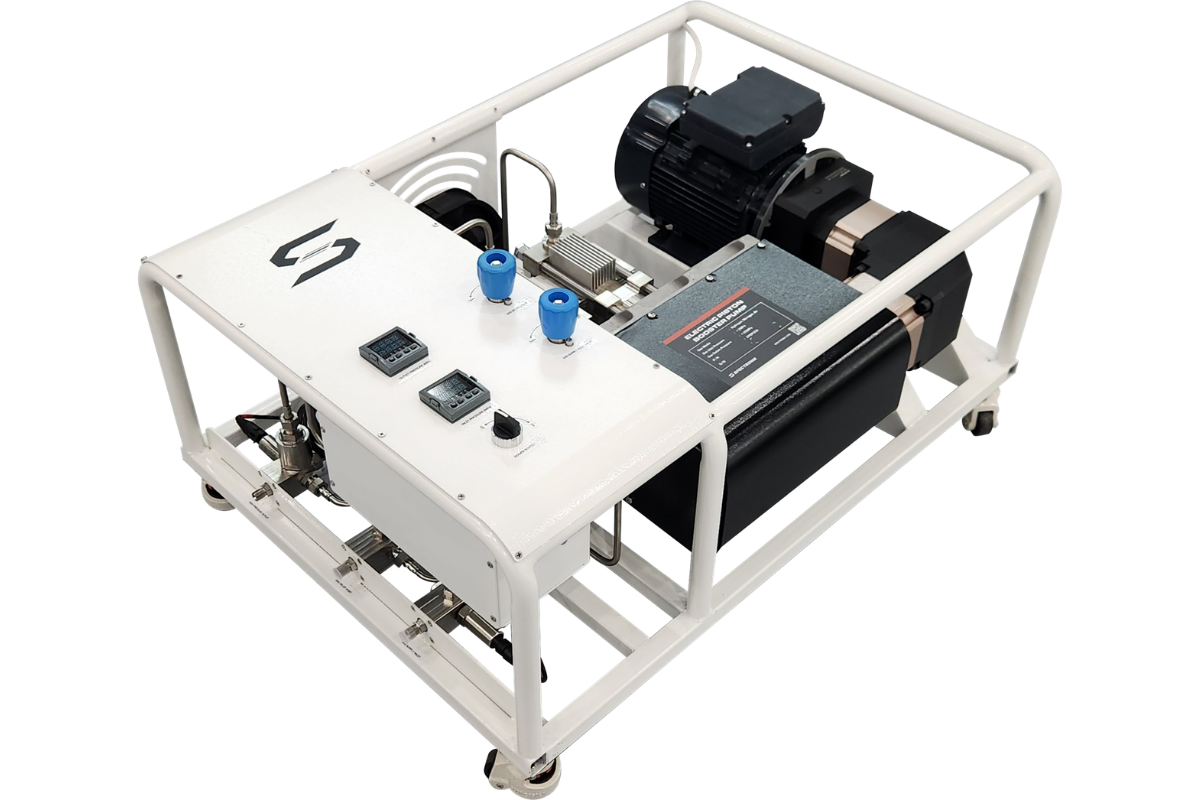

Gas Booster Pump
Buggy
1. Sport Alloy
2. Multi-Spoke
3. Matte Black
4. Machined Sport
5. Classic Four-Spoke
6. Off-Road Black
1. Jet Black
2. Pearl White
3. Titanium Silver
4. Racing Red
5. Sunset Orange
6. Deep Burgundy
7. Midnight Navy
8. Electric Blue
9. Ocean Blue
10. Sky Blue
11. Mint Green
12. Lime Green
1. Black Diamond
2. Saddle Tan
3. Mocha Diamond
4. Blue Sport
5. Burgundy Sport
6. Executive Black
P3000
Y
N
0. None
1. 9L
2. 12L
3. 20L
4. 22L
0. None
1. With Pressure Transducer
2. Without Pressure Transducer
0. None
1. Included
Buggy - 5 - 3 - 1 - P3000 - Y - 4 - 1 - 0
(Copy This Code When Ordering)
